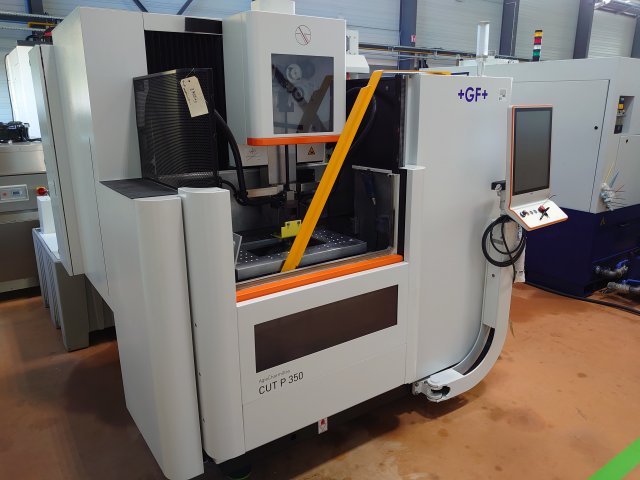

CHARMILLES CUT P350

CHARMILLES CUT P350

产品详情

技术细节

-轴数:7

-主轴数量:2个

主轴

-主轴功率:15[kW]

-主轴转速:6000[转/分]

-最大钢筋直径:42[mm]

-C轴分度精度:0.001[°]

反心轴

-主轴功率:15[kW]

-主轴转速:6000[转/分]

-最大钢筋直径:32[mm]

-C轴分度精度:0.001[°]

-行程:330[毫米]

车铣主轴

-X/Z行程:410/400[mm]

-Y冲程:200[mm]

-B轴行程:-25/+115[°]

-B轴分度精度:0.001[°]

-工具类型:HSK40

-主轴转速:30000[rpm]

-主轴功率:8[kW]

换刀器

-自动。换刀器类型:雨伞

-刀库容量:60

-刀具更换时间:1.2[秒]

-职位数量:60

电源

-电源电压:400[V]

机器工作时间

-通电时数:62463[h]

-工作时间:28720[h]

设备

-CNC:Fanuc 31i A5型

-电子手轮

-线性尺度

-冷却液箱

*带高压泵:100[巴]

*冷却液通过主轴

-油雾提取器

-主轴冷却装置

-工具探针

-刀具破损检测

-零件捕捉器

-棒材装载机

-灭火器

*注意:不保证工作秩序。由买方的合格机构进行检查。

-铣刀架数量:30个


TECHNICAL DETAILS

- Number of axes : 7

- Number of spindles : 2

MAIN SPINDLE

- Spindle power : 15 [kW]

- Spindle speeds : 6000 [rpm]

- Max. bar diameter : 42 [mm]

- C axis indexing precision : 0.001 [°]

COUNTER-SPINDLE

- Spindle power : 15 [kW]

- Spindle speeds : 6000 [rpm]

- Max. bar diameter : 32 [mm]

- C axis indexing precision : 0.001 [°]

- Travel : 330 [mm]

TURNING-MILLING SPINDLE

- X/Z stroke : 410/400 [mm]

- Y stroke : 200 [mm]

- B Axis stroke : -25/+115 [°]

- B axis indexing precision : 0.001 [°]

- Tool type : HSK40

- Spindle speeds : 30000 [rpm]

- Spindle power : 8 [kW]

TOOL CHANGER

- Auto. Tool Changer type : Umbrella

- Tool magazine capacity : 60

- Tool exchange time : 1.2 [sec]

- Number of positions : 60

POWER SUPPLY

- Supply voltage : 400 [V]

MACHINE HOURS

- Number of hours under power : 62463 [h]

- Number of working hours : 28720 [h]

EQUIPMENT

- CNC : Fanuc 31i model A5

- Electronic handwheel

- Linear scales

- Coolant tank

* with high-pressure pump : 100 [bars]

* Coolant through spindle

- Oil mist extractor

- Spindle cooling unit

- Tool probe

- Tool breakage detection

- Parts catcher

- Bar loader

- Fire extinguisher

* NB : working order not guaranteed. To have it checked by a qualified organization of the buyer.

- Number of milling tool holders : 30
