技术细节

-主轴数量：6个独立主轴

-杆间距：32[mm]

-最大主轴转速：6 300[rpm]

-配备32个数字轴的机器

-滑动统一1.1:X和Z轴由CNC控制

-滑块统一1.2：X轴固定，Z轴由CNC控制

-slide unity 2.1：固定X轴，由CNC控制的Z轴

-slide unity 2.2:X和Z轴由CNC控制

-slide unity 3.1:X和Z轴由CNC控制

-滑块统一3.2：固定X轴，由CNC控制的Z轴

-slide unity 4.1:X和Z轴由CNC控制

-滑块统一4.2：固定X轴，由CNC控制的Z轴

-slide unity 5.1：X轴固定，Z轴由CNC控制

-slide unity 5.2:X和Z轴由CNC控制

-滑动单元6.1:X和Z轴由CNC控制

-滑动单元6.2:X和Z轴由CNC控制

-同步装置，主轴位置6.1

设备

-索引C200-4控制（西门子SINUMERIK 840D）

-简单NCU

-IEMCA SIR MS32/33/P棒材装载机

-带高压泵的冷却液箱

-圆丘切屑输送机

-里德尔冷却装置

-带输送机的零件收集器位于位置6

-3.1 et 4.1位置的交叉钻孔装置

TECHNICAL DETAILS

- number of spindles : 6 independent

- bar clearance : 32 [mm]

- maxi spindle speed : 6 300 [rpm]

- machine equipped with 32 numerical axes

- slide unity 1.1 : X and Z axes controlled by CNC

- slide unity 1.2 : fixed X axis, Z axis controlled by CNC

- slide unity 2.1 : fixed X axis, Z axis controlled by CNC

- slide unity 2.2 : X and Z axes controlled by CNC

- slide unity 3.1 : X and Z axes controlled by CNC

- slide unity 3.2 : fixed X axis, Z axis controlled by CNC

- slide unity 4.1 : X and Z axes controlled by CNC

- slide unity 4.2 : fixed X axis, Z axis controlled by CNC

- slide unity 5.1 : fixed X axis, Z axis controlled by CNC

- slide unity 5.2 : X and Z axes controlled by CNC

- slide unity 6.1 : X and Z axes controlled by CNC

- slide unity 6.2 : X and Z axes controlled by CNC

- synchronous unit, spindle position 6.1

EQUIPMENT

- INDEX C200-4 control (Siemens SINUMERIK 840D)

- Simple NCU

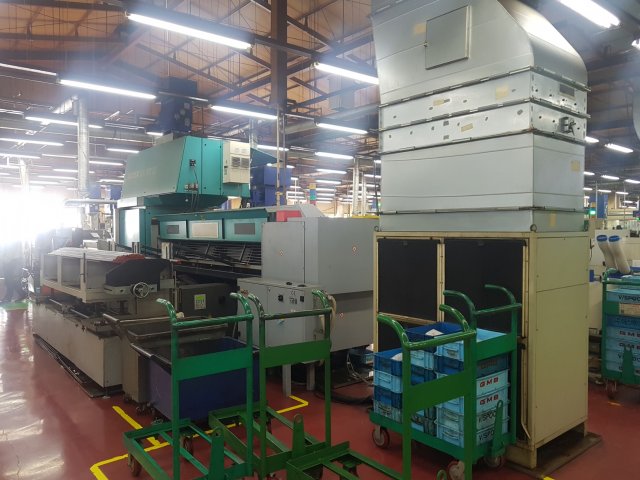

- IEMCA SIR MS32/33/P bar loader

- Coolant tank with HP pump

- KNOLL chips conveyor

- RIEDEL cooling unit

- Parts catcher with conveyor in position 6

- Cross drilling device in position 3.1 et 4.1
