技术细节

-主轴数量：6个独立主轴

-杆间距：52[毫米]

-最大主轴转速：5000[Rpm]

-主轴功率：29[千瓦]

-滑动单元1.1：由CN控制的X轴和Z轴

-滑动单元1.2：由CN控制的X轴和Z轴

-滑动单元2.1：由CN控制的X轴和Z轴

-滑动单元2.2：由CN控制的X轴和Z轴

-滑动单元3.1：由CN控制的X轴和Z轴

-滑动单元3.2：由CN控制的X轴和Z轴

-滑动单元4.1：由CN控制的X轴和Z轴

-滑动单元4.2：由CN控制的X轴和Z轴

-滑动单元5.1：由CN控制的X轴和Z轴

-滑动单元5.2：由CN控制的X轴和Z轴

-滑动单元6.1：由CN控制的X轴和Z轴

-滑动单元6.2：由CN+SCARA轴控制的Z轴

X和Y变换

-电源：TN 50 Hz，400[V]

-重量：6000[千克]

-生产时间：45780小时

设备

-西门子840D控制系统

-双NCU

-棒料喂料器IEMCA SIR MS52/33P

-过滤旋钮VRF500

-高压泵35巴/55升/毫米

-冷却液通过工具

-火喷灯

-排屑器

-隔离变压器

-状态灯3种颜色

-部分捕手机器人Staubi

TECHNICAL DETAILS

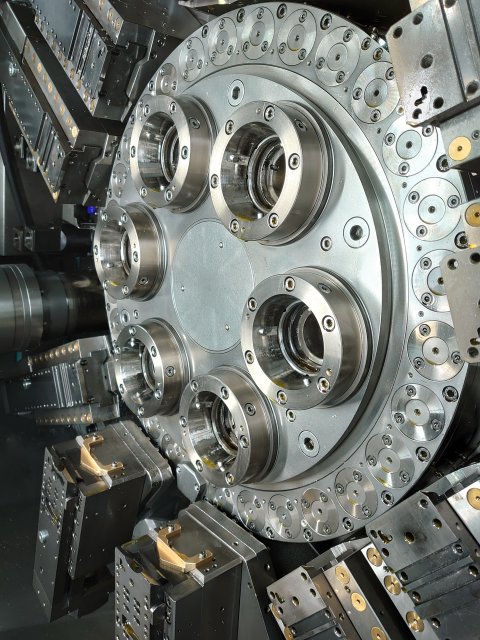

- Number of spindles : 6 independent

- Bar clearance : 52 [mm]

- Max. spindle speed : 5000 [Rpm]

- Spindle power : 29 [kW]

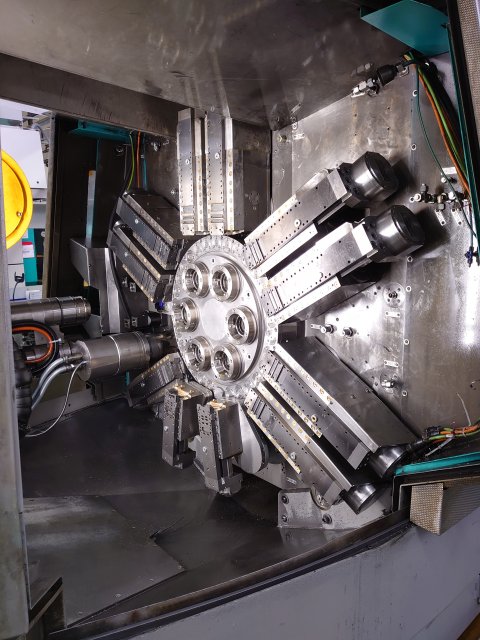

- Slide unit 1.1 : axes X and Z controlled by CN

- Slide unit 1.2 : axes X and Z controlled by CN

- Slide unit 2.1 : axes X and Z controlled by CN

- Slide unit 2.2 : axes X and Z controlled by CN

- Slide unit 3.1 : axes X and Z controlled by CN

- Slide unit 3.2 : axes X and Z controlled by CN

- Slide unit 4.1 : axes X and Z controlled by CN

- Slide unit 4.2 : axes X and Z controlled by CN

- Slide unit 5.1 : axes X and Z controlled by CN

- Slide unit 5.2 : axes X and Z controlled by CN

- Slide unit 6.1 : axes X and Z controlled by CN

- Slide unit 6.2 : axis Z controlled by CN + SCARA axis

TRANSFORMATION X and Y

- Supply : TN 50 Hz, 400 [V]

- Weight : 6000 [kg]

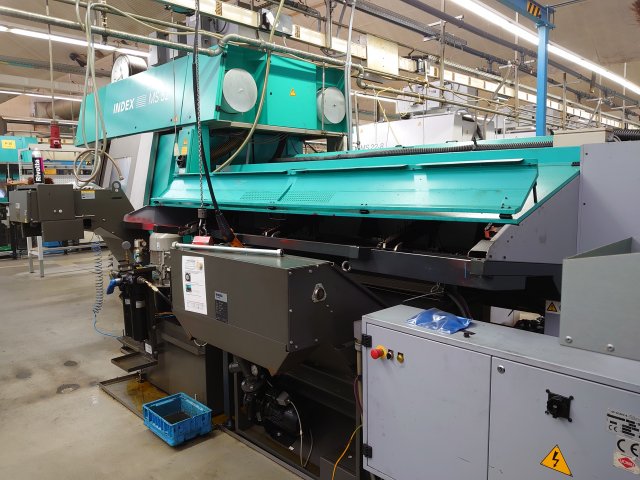

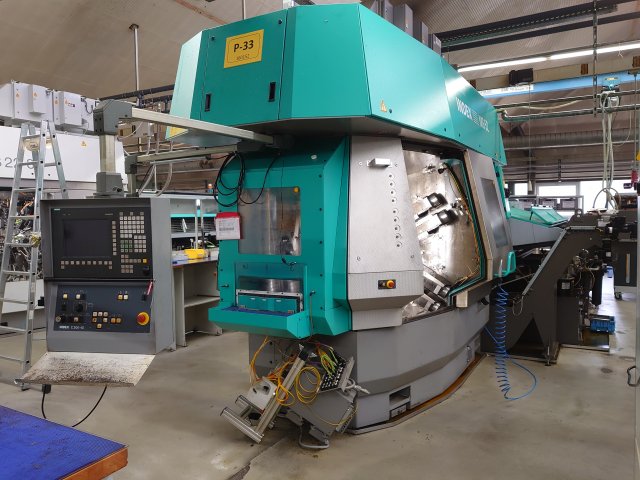

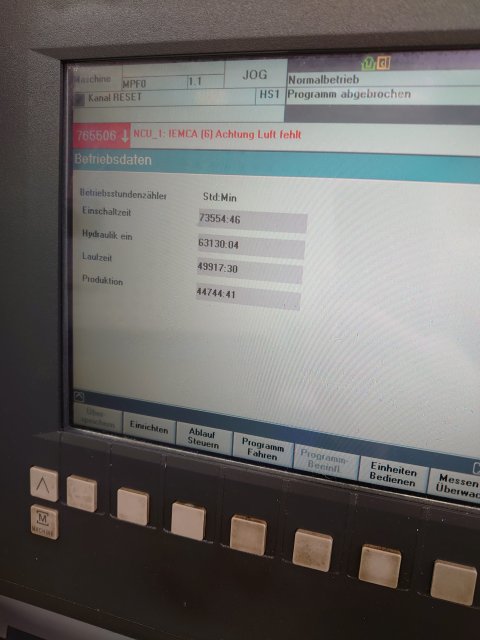

- Production hours : 45780 hours

EQUIPMENT

- Control Siemens 840D

- Double NCU

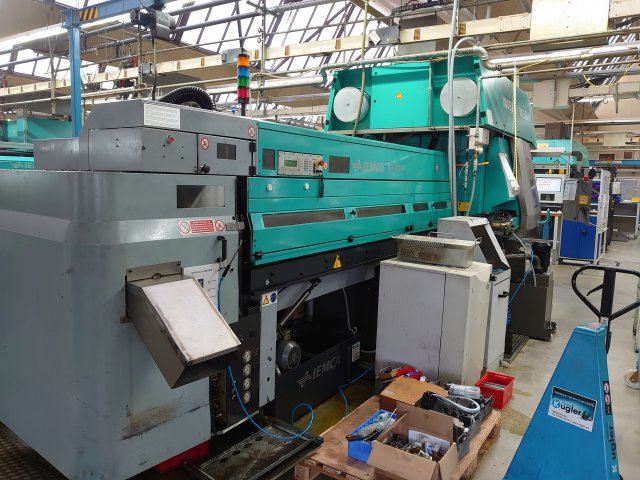

- Bar feeder IEMCA SIR MS52/33P

- Filtration Knoll VRF500

- HP pump 35 bars/55l/mm

- Coolant through tools

- fire estinguisher

- Chip conveyor

- Isolation transformer

- Status lamp 3 colors

- Part catcher robot Staubli
